Used Adwest 7,500 Regenerative Thermal Oxidizer for sale

This used Adwest 7,500 regenerative thermal oxidizer (RTO) has a 7,500 scfm capacity with a puff capture (VOC entrapment) feature

The Adwest RTO is in very good condition internally, but somewhat UV weathered externally. The oxidizer was taken offline in early 2019 and has been idle since. The RTO includes a two-chamber design with random packed ceramic media. Induced-draft system with fan downstream of media chamber. RTO has been removed and is in the Kono Kogs outdoor storage facility located in Wisconsin.

Adwest Retox RTO systems are designed to provide one of the lowest utility costs (fuel & electric) of any leading oxidizer system. It is a simple RTO with over-sized beds to reduce pressure drop.

This regenerative thermal oxidizer has the following features:


  • Maximum design flow- 7,500 scfm @ up to 350F process emissions
  •
  • 95+% effective heat exchanger in 2 beds (ceramic media included)
  •
  • Pneumatic poppet valve for flow direction changes through media
  •
  • Main RTO fan with 60 hp TEFC motor and variable speed drive
  •
  • Maxon Dual Fuel burner- oil fuel train & natural gas fuel train; for heat-up
  •

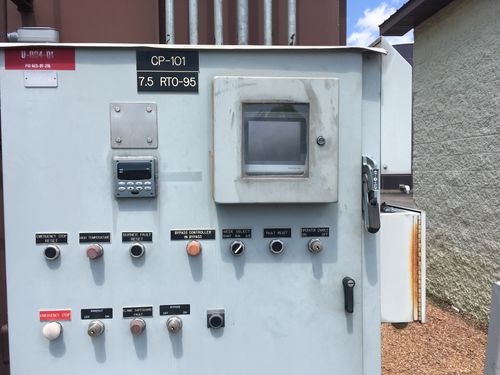

  • Allen Bradley 5/05 PLC
  •
  • Allen Bradley Panelview Plus 600 operator interface
  •
  • N-Tron Ethernet switch
  •
  • Combustion blower with 5 hp TEFC motor
  •
  • Puff return blower w/5 hp TEFC motor
  •
  • Inlet start-up/Fresh air damper with electro-pneumatic actuator
  •
  • Stand-alone exhaust stack (approx 31’ from grade; 13′ carbon steel base; 18′ stainless steel) w/test ports
  •
  • Fuel gas injection for high fuel efficiency and low NOx operation
  •
  • Complete owner’s manual with electrical and mechanical drawings

See case studies of refurbished RTO units by Kono Kogs, or contact our team to speak with an expert.

Equipment Specifications

  • Type of Equipment:
  • Brand:
  • Approx. Footprint:
    Approx. 36’ long, 12’ wide
  • Weight:
    Approx. 75,000 lbs (including ceramic media)
  • Electrical Requirements:
    460/3/60, 75 amps
  • Gas Requirements:
    3,000 scfh max @ 5 psig
  • Compressed Air Requirements:
    8 cfm @ 90 psi and -40F dew point
